STS and Water to Air Intercooler
06-20-2006, 07:06 PM
#1
TECH Enthusiast
Thread Starter
iTrader: (4)
Join Date: May 2005
Location: Sugar Hill, GA
Posts: 650
Likes: 0
Received 0 Likes
on
0 Posts
STS and Water to Air Intercooler
Ok, I am working on a water to air intercooler for my STS kit (fortunately I havent yet cut any stock pipes, only drilled a whole in one). But here Is what I am doing, I have put the IC in the stock air-box location (post maf), and am planning to relocate the IAT sensor the 30* elbow that goes into the TB. So here is what I am wondering. Will having the air metered before the IC then taking the temp after the IC play hell with my tune? If it will I have come up with some solutions.

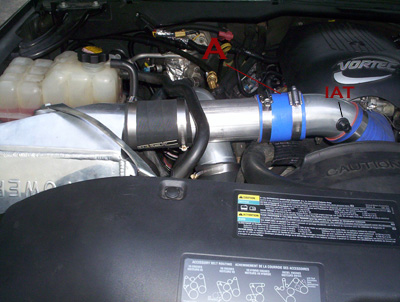

As you will see in the attached image below where I have put the IAT, the maf is in the stock location. I am considering moving the Maf to point "A" about where the coupler is now. Thats really the only solution I can come up with. (PS if any of you are interested, I will offer HP gain results after I am retuned). Any suggestions, advice, help? I am really in uncharted territory for me right now. HELP!!!
As you will see in the attached image below where I have put the IAT, the maf is in the stock location. I am considering moving the Maf to point "A" about where the coupler is now. Thats really the only solution I can come up with. (PS if any of you are interested, I will offer HP gain results after I am retuned). Any suggestions, advice, help? I am really in uncharted territory for me right now. HELP!!!
Last edited by Injected1; 06-20-2006 at 07:49 PM.
06-20-2006, 07:56 PM
#4
I would think you would be fine like that. Thats sort of what the radix guys do i think. They put the IAT in the intake manifold, and leave the Maf in its stock location. So i would think it would be okay. On a side note, how does that 90* silicone coupling look when the truck is idling? The one going into the intake flange. Does it collapse under vacuum? Have you looked at it when the truck is running?
06-20-2006, 07:57 PM
#5
i cant say for sure but i think it will mess with your tune some. i would stick the maf in where that coupling is like you said. i have always had the maf post intercooler and had consistant tuning with it there. is there some reason you dont use the iat sensor that is built into the maf?
06-20-2006, 08:00 PM
#6
Originally Posted by parish8
i cant say for sure but i think it will mess with your tune some. i would stick the maf in where that coupling is like you said. i have always had the maf post intercooler and had consistant tuning with it there. is there some reason you dont use the iat sensor that is built into the maf?
06-20-2006, 08:03 PM
#7
TECH Enthusiast
Thread Starter
iTrader: (4)
Join Date: May 2005
Location: Sugar Hill, GA
Posts: 650
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Linda
I would think you would be fine like that. Thats sort of what the radix guys do i think. They put the IAT in the intake manifold, and leave the Maf in its stock location. So i would think it would be okay. On a side note, how does that 90* silicone coupling look when the truck is idling? The one going into the intake flange. Does it collapse under vacuum? Have you looked at it when the truck is running?
Trending Topics
06-20-2006, 08:06 PM
#8
TECH Enthusiast
Thread Starter
iTrader: (4)
Join Date: May 2005
Location: Sugar Hill, GA
Posts: 650
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Linda
Dont all the radix guys do it just like he is talking about? Maf stays at home place (pre I/C) and the IAT sensor moves to the intake (post I/C)...at least i thought so......maybe im wrong.
06-20-2006, 08:58 PM
#10
Launching!
Join Date: Aug 2002
Location: Summerville, Sc
Posts: 278
Likes: 0
Received 0 Likes
on
0 Posts
Is this what you are trying to do? Sorry the pictures are not better. I ended up selling the intercooler setup a few months ago. I just relocated the MAF after the inercooler.
