Default water pump fabrication
Has anyone changed outlets or fabricated different outlets on the water pump so the heater core hoses dont touch the turbo or log? Weld a 90 etc?
121 is offline
Reply Like
Old 04-04-2014, 11:13 AM
  #2
Hunt&Fisherator
iTrader: (15)

silver-mod-o's Avatar

Join Date: Nov 2005
Location: SETx
Posts: 14,314
Received 17 Likes on 14 Posts
Default
I don't know of any but if you have the means to weld on cast aluminum it seems pretty straight forward.
silver-mod-o is offline
Reply Like
Old 04-04-2014, 11:45 AM
  #3
121
TECH Regular
Thread Starter
iTrader: (5)

121's Avatar

Join Date: Mar 2011
Location: Cheyenne, WY
Posts: 435
Received 0 Likes on 0 Posts
Default
I agree. Just wanted to see what others have done
121 is offline
Reply Like
Old 04-04-2014, 12:02 PM
  #4
12 Second Club
iTrader: (97)

Funkster's Avatar

Join Date: Jul 2006
Location: Urbandale, Iowa
Posts: 1,063
Likes: 0
Received 1 Like on 1 Post
Default
There is a company called CBM who make a bunch of pump ends of various angles, end types, etc.
Funkster is offline
Reply Like
Old 04-04-2014, 12:47 PM
  #5
On The Tree
iTrader: (10)

iDEALS1's Avatar

Join Date: Nov 2007
Location: DFW, Texas
Posts: 148
Likes: 0
Received 1 Like on 1 Post
Default
I just extended mine and ran it around the fender and up under the turbo to the pump.
iDEALS1 is offline
Reply Like
Old 04-04-2014, 12:54 PM
  #6
I have a gauge for that
iTrader: (42)

Atomic's Avatar

Join Date: Jan 2006
Location: Huntsville, AL
Posts: 16,261
Received 391 Likes on 261 Posts
Default
If you pull the barbs out (they are pressed in), the holes are perfect size for 3/8npt and 1/2npt taps. Once you tap it you can put whatever fitting you want in there.
Atomic is offline
Reply Like
Old 04-04-2014, 01:39 PM
  #7
Resident Retard
iTrader: (31)

BlackGMC's Avatar

Join Date: Jan 2006
Location: Fort Worth - TX
Posts: 17,216
Received 20 Likes on 16 Posts
Default

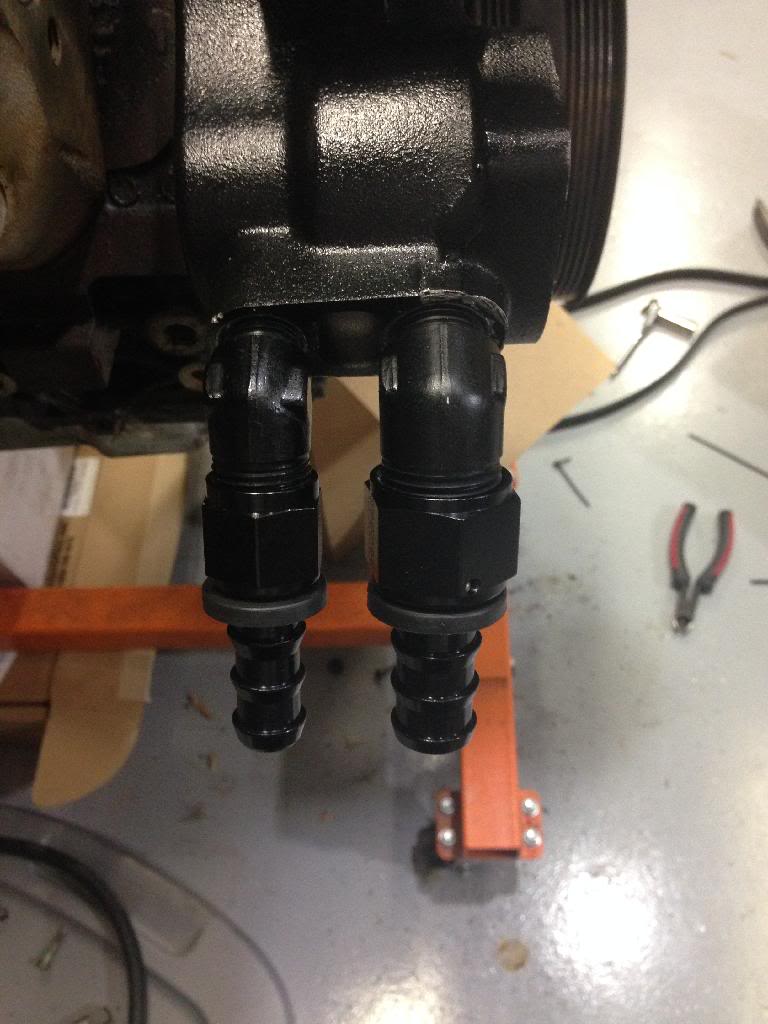

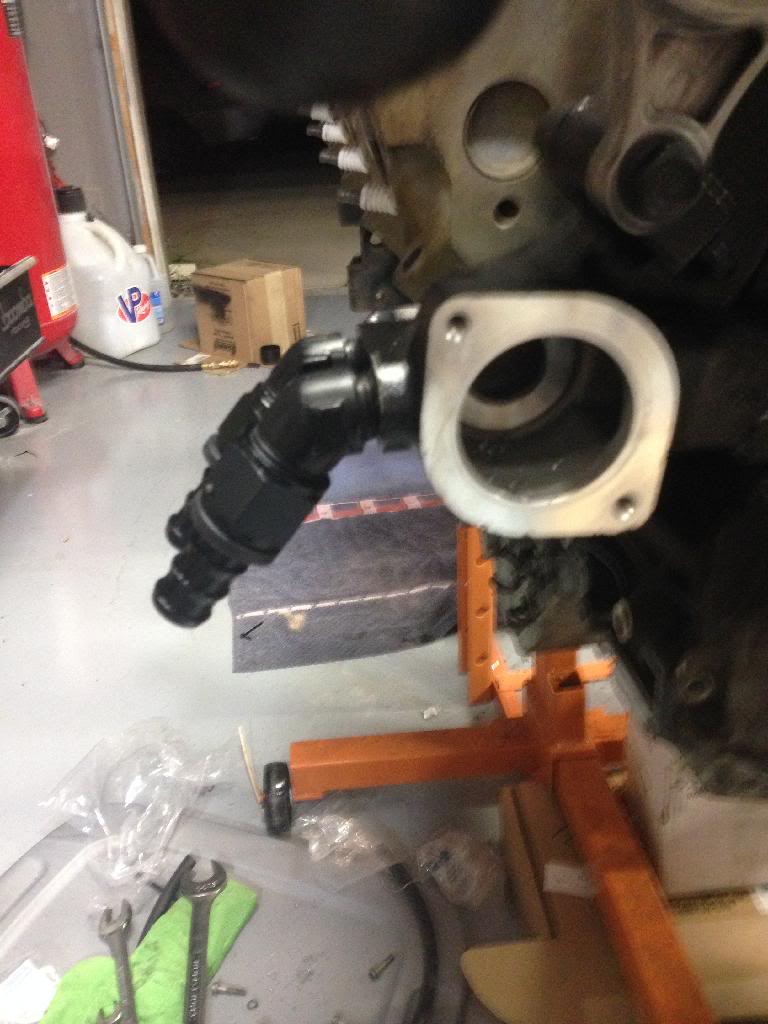

I did.

Name: E622CE59-3F3B-449F-9662-87CAE9A068E6_zpsljbedpoz.jpg Views: 424 Size: 82.7 KB

Name: 8D7A72FF-AC32-4D7D-AAF9-282642E89DD2_zpsxm45pzzk.jpg Views: 449 Size: 81.0 KB
BlackGMC is offline
Reply Like

Trending Topics

Old 04-04-2014, 01:43 PM
  #8
TECH Resident
iTrader: (4)

timmay208's Avatar

Join Date: Oct 2013
Location: CDA, ID
Posts: 830
Likes: 0
Received 2 Likes on 2 Posts
Default
good info!
timmay208 is offline
Reply Like
Old 04-04-2014, 03:28 PM
  #9
121
TECH Regular
Thread Starter
iTrader: (5)

121's Avatar

Join Date: Mar 2011
Location: Cheyenne, WY
Posts: 435
Received 0 Likes on 0 Posts
Default
Originally Posted by Atomic
If you pull the barbs out (they are pressed in), the holes are perfect size for 3/8npt and 1/2npt taps. Once you tap it you can put whatever fitting you want in there.
Sweet your the man!


Thanks for all the help guys!
121 is offline
Reply Like
Old 04-04-2014, 05:07 PM
  #10
Truck Sponsor
iTrader: (12)

TrickTurbo's Avatar

Join Date: Sep 2006
Location: Wichita Falls Tx.
Posts: 4,466
Received 62 Likes on 50 Posts
Default
Who's log touches the heater hoses?
