Official A4 to M6 (T-56) Thread!
#211
TECH Enthusiast
iTrader: (22)
Join Date: Dec 2002
Location: mt.pleasant pa 15666
Posts: 546
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Quik
i want to know specific wires for the cruise and and neutral safety switch...also want to knwo the 6wires on the clutch pedal
tune i got that coverd i do believe
tune i got that coverd i do believe
#212
5 year bitches!
iTrader: (7)
Join Date: Oct 2003
Location: Pittsburgh!!!!!!!! Pa
Posts: 4,890
Likes: 0
Received 2 Likes
on
2 Posts
ok what i found out....
on the clutch switch you have these wires
Pin A PPL wire is for the TCC brake switch/cruise control release signal
Pin B brn/wht CPP switch signal
pin C lt grn igntion positive voltage
pin d ppl/wht starter relay coil supply voltage
pin e brn ignition 3 voltage
pin f gry CPP switch signal
on your A4 plug
Pin A orn/blk park/neutral signal
pin b lt grn park neutral position switch park signal
pin c pnk ignition 1 voltage
pin d blk/whit ground
pin e ppl/wht starter relay coil supply voltage
pin f lt grn back up lamp supply voltage
pin g yel neutral safetly switch park/neutral signal
i ran the ppl/wht wire from the A4 to the ppl/wht on pedal
i ran the Yel wire from the A4 to the gry on pedal
as for working havent tried yet
i did get wiring diagrams and went over it best i could to find out
on the clutch switch you have these wires
Pin A PPL wire is for the TCC brake switch/cruise control release signal
Pin B brn/wht CPP switch signal
pin C lt grn igntion positive voltage
pin d ppl/wht starter relay coil supply voltage
pin e brn ignition 3 voltage
pin f gry CPP switch signal
on your A4 plug
Pin A orn/blk park/neutral signal
pin b lt grn park neutral position switch park signal
pin c pnk ignition 1 voltage
pin d blk/whit ground
pin e ppl/wht starter relay coil supply voltage
pin f lt grn back up lamp supply voltage
pin g yel neutral safetly switch park/neutral signal
i ran the ppl/wht wire from the A4 to the ppl/wht on pedal
i ran the Yel wire from the A4 to the gry on pedal
as for working havent tried yet
i did get wiring diagrams and went over it best i could to find out
#215
TECH Resident
iTrader: (11)
Join Date: Jul 2006
Location: Glen Burnie, MD
Posts: 825
Likes: 0
Received 0 Likes
on
0 Posts
Issue
Have any of you guys ran in to the problem where your ABS and Service Brake light Soon comes on? My speedo is about 20 miles off and I am waiting for my new tune BUT I am wondering if it is because the speedo is so far off the ABS sensor is going crazy?
#216
TECH Senior Member
iTrader: (6)
Join Date: Jul 2005
Location: Decatur, AL
Posts: 5,257
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 04GIBBS
Have any of you guys ran in to the problem where your ABS and Service Brake light Soon comes on? My speedo is about 20 miles off and I am waiting for my new tune BUT I am wondering if it is because the speedo is so far off the ABS sensor is going crazy?
#218
TECH Veteran
Thread Starter
iTrader: (1)
Join Date: Apr 2004
Location: Arizona Bay
Posts: 4,038
Likes: 0
Received 0 Likes
on
0 Posts

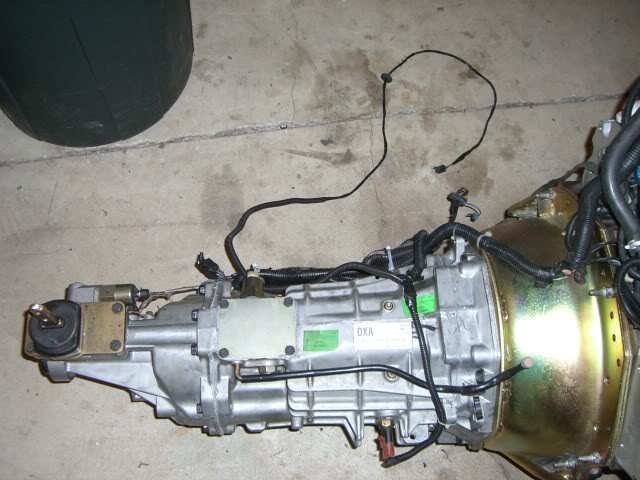

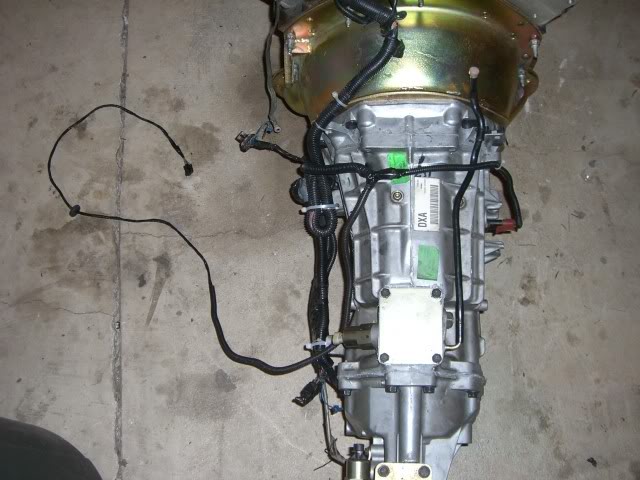

I'm curious as to what you come up with Quik. All I did was the back up light switch wiring. This will make it just one step closer to being a factory like install.
I hope GM is taking notes on this thread.
I hope GM is taking notes on this thread.
#219
TECH Enthusiast
iTrader: (22)
Join Date: Dec 2002
Location: mt.pleasant pa 15666
Posts: 546
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by vanillagorilla
I'm curious as to what you come up with Quik. All I did was the back up light switch wiring. This will make it just one step closer to being a factory like install.
I hope GM is taking notes on this thread.
I hope GM is taking notes on this thread.
https://www.performancetrucks.net/fo...d.php?t=385542
#220
5 year bitches!
iTrader: (7)
Join Date: Oct 2003
Location: Pittsburgh!!!!!!!! Pa
Posts: 4,890
Likes: 0
Received 2 Likes
on
2 Posts
Originally Posted by Quik
ok what i found out....
on the clutch switch you have these wires
Pin A PPL wire is for the TCC brake switch/cruise control release signal
Pin B brn/wht CPP switch signal
pin C lt grn igntion positive voltage
pin d ppl/wht starter relay coil supply voltage
pin e brn ignition 3 voltage
pin f gry CPP switch signal
on your A4 plug
Pin A orn/blk park/neutral signal
pin b lt grn park neutral position switch park signal
pin c pnk ignition 1 voltage
pin d blk/whit ground
pin e ppl/wht starter relay coil supply voltage
pin f lt grn back up lamp supply voltage
pin g yel neutral safetly switch park/neutral signal
i ran the ppl/wht wire from the A4 to the ppl/wht on pedal
i ran the Yel wire from the A4 to the gry on pedal
as for working havent tried yet
i did get wiring diagrams and went over it best i could to find out
on the clutch switch you have these wires
Pin A PPL wire is for the TCC brake switch/cruise control release signal
Pin B brn/wht CPP switch signal
pin C lt grn igntion positive voltage
pin d ppl/wht starter relay coil supply voltage
pin e brn ignition 3 voltage
pin f gry CPP switch signal
on your A4 plug
Pin A orn/blk park/neutral signal
pin b lt grn park neutral position switch park signal
pin c pnk ignition 1 voltage
pin d blk/whit ground
pin e ppl/wht starter relay coil supply voltage
pin f lt grn back up lamp supply voltage
pin g yel neutral safetly switch park/neutral signal
i ran the ppl/wht wire from the A4 to the ppl/wht on pedal
i ran the Yel wire from the A4 to the gry on pedal
as for working havent tried yet
i did get wiring diagrams and went over it best i could to find out
PIN C & B are tied together when selector is in park
PIN C & F are for reverse lights
PIN G & E are for neutral safety switch
for PIN A its just a capped off wire that isnt in the harness [atleast for my 02 its not]
PIN D seems to be tied into the smaller plug for the black box
so tomorrow i plan on connecting the PINK [c] & Lt Grn [b] together so i have a complete circuit
and see where that gets me.
its only a matter of a few wires before i figure this out for everyone
