Originally Posted by XLR8NSS
We need some wiring diagrams and pinouts in here.
#43
TECH Apprentice

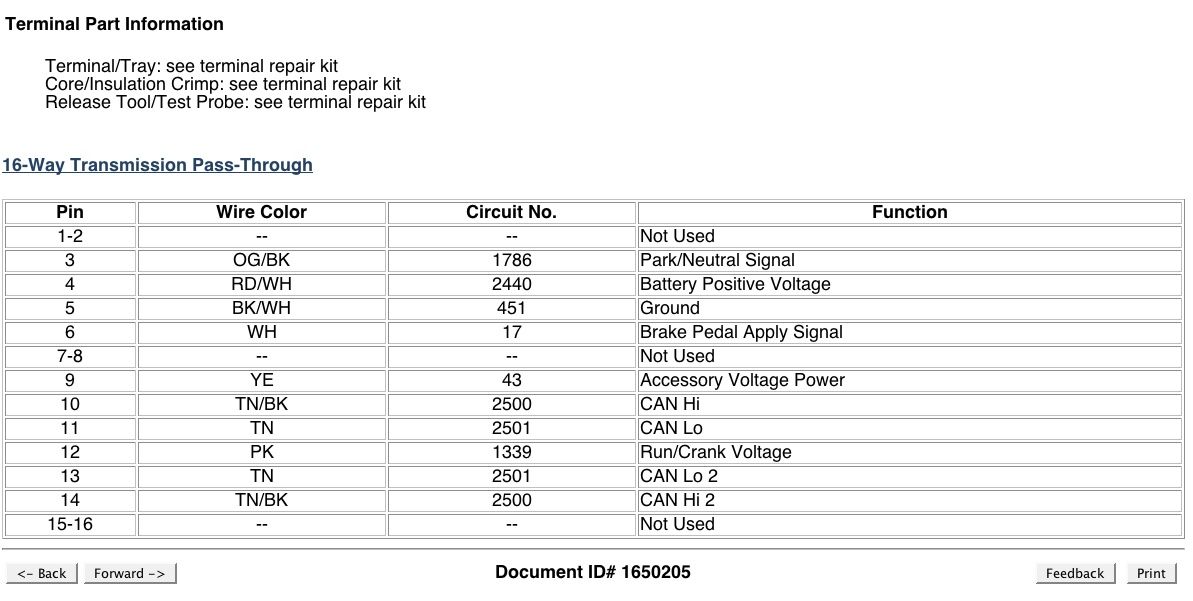

Looking at some info tossed my way, found this of the tranny pass through connector pinout (n two parts as page was too long to take single picture) Might help,might not. Also seems like the BCM does have some inputs/outputs for the tranny too (shift level, brake pedal, things like that).
There is a speed signal generated inside the tranny, but it is sent as CAN signal looks like. Board will only allow 100k pics so if you need better pm me with e-mail address and I'll try to help out...this new stuff is a big leap it seems, modules everywhere and programming needed for everything...
There is a speed signal generated inside the tranny, but it is sent as CAN signal looks like. Board will only allow 100k pics so if you need better pm me with e-mail address and I'll try to help out...this new stuff is a big leap it seems, modules everywhere and programming needed for everything...
Last edited by niugnep; 05-07-2007 at 07:27 PM.
#44
The connector out by the ECU connection, which I originally thought was for a TCU like the 4L60s, actually turns out to connect to another harness up under the electrical center under the hood. That harness runs through the firewall and connects to the electronic pedal as well as other things I haven't figured out yet. The pics that niugnep posted are the transmission side connection. There are no other external outputs on the transmission or the transfer case so all referenced signals pass through that single connector.
Of interest to the NNBS owners, the ECU and electrical center connections are identical between the 4.8/5.3/6.0 trucks and the 6.2 trucks. The only difference is in the engine/transmisison harness which plugs right into the body.
Of interest to the NNBS owners, the ECU and electrical center connections are identical between the 4.8/5.3/6.0 trucks and the 6.2 trucks. The only difference is in the engine/transmisison harness which plugs right into the body.
Last edited by Wide Open; 05-07-2007 at 08:38 AM. Reason: Spell Check
#45
Originally Posted by ShortNStout03
I have a 2003 swb silverado with a 4.3 V6. Is it possible to drop the new 2007 6.2L L92 motor that goes in the new denalis into my 03 silverado. If so what all would have to change to make it fit and how much money, roughly, would i have to spend on the conversion?
#46
TECH Apprentice
Originally Posted by Wide Open
Of interest to the NNBS owners, the ECU and electrical center connections are identical between the 4.8/5.3/6.0 trucks and the 6.2 trucks. The only difference is in the engine/transmisison harness which plugs right into the body.
Another option would be six speed only, behind the 5.3 would be pretty respectable improvement. ECM would need tuning of course, wonder how plug and play that would all be.
Do you happen to have the connector ID number for the one on the firewall?
Real question is, why won't GM just let us order this in the first place?
#47
Yes if you use the 6.2 harness. I spent most of the day Saturday crawling around under an Escalade, Denali, 2wd Silverado, and a 4wd Sierra. All the connectors are exactly the same (with the exception of the deletion of the TCU pigtail on the 6.2 harness) on the 07 bodies. You may have an issue adapting the VSS from the 6L80E to the two pin connector on your transfer case.
There is a five pin connector on the very rear of the harness by the transmission tailshaft that plugs into a body harness. I am not sure what its function is but all bodies have this connector.

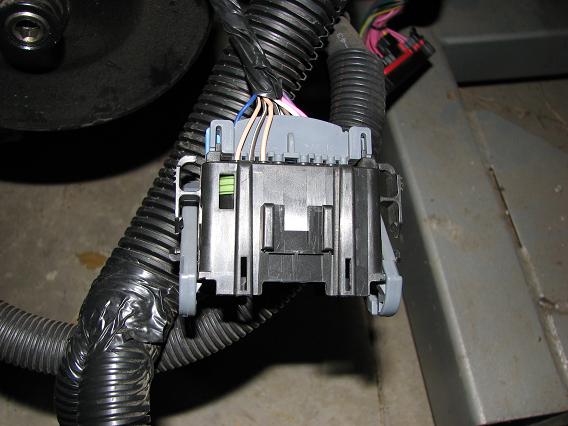

The first picture below is the connector missing from the 6.2 harness (TCU). The second picture is the “other” connector I mentioned that runs under the electrical center and through the firewall.
I have a local company researching the viability of the 6.2/6L80E swap into my 00 Silverado and a harness company working on making a custom harness to use an E67 ECU (utilizes both CAN and serial data I believe so my gauges will work).
If neither pans out then I will buy a 07 and drop in the new combo.
As for why GM won't offer the 6L80E in 08...my guess is because they suck.
There is a five pin connector on the very rear of the harness by the transmission tailshaft that plugs into a body harness. I am not sure what its function is but all bodies have this connector.
The first picture below is the connector missing from the 6.2 harness (TCU). The second picture is the “other” connector I mentioned that runs under the electrical center and through the firewall.
I have a local company researching the viability of the 6.2/6L80E swap into my 00 Silverado and a harness company working on making a custom harness to use an E67 ECU (utilizes both CAN and serial data I believe so my gauges will work).
If neither pans out then I will buy a 07 and drop in the new combo.
As for why GM won't offer the 6L80E in 08...my guess is because they suck.
#48
TECH Apprentice
Originally Posted by Wide Open
You may have an issue adapting the VSS from the 6L80E to the two pin connector on your transfer case.
There is a five pin connector on the very rear of the harness by the transmission tailshaft that plugs into a body harness. I am not sure what its function is but all bodies have this connector.
The first picture below is the connector missing from the 6.2 harness (TCU). The second picture is the “other” connector I mentioned that runs under the electrical center and through the firewall.
There is a five pin connector on the very rear of the harness by the transmission tailshaft that plugs into a body harness. I am not sure what its function is but all bodies have this connector.
The first picture below is the connector missing from the 6.2 harness (TCU). The second picture is the “other” connector I mentioned that runs under the electrical center and through the firewall.
What do the factory 6.2/6speed dash readouts show? Does it read PRNDM? Seems to me you only have drive and then manual so need some way to manually shift. Mod steering wheel controls? You have better access to real vehicles than me it seems.
Hope you have some luck with the electronics solutions, being first is never easy.
Last edited by niugnep; 05-09-2007 at 08:19 AM.
#49
Not sure of the connector #'s...
The main harness that plugs into the electrical center is designated as X3 or (C3 on the pickups). The one that goes through the dash and the one down by the driveshaft I don't know yet.
The 6L80E display is PRNDM1. At this point all I care about is the thing shifts then maybe in the future I will fool around with manual shifting.
The main harness that plugs into the electrical center is designated as X3 or (C3 on the pickups). The one that goes through the dash and the one down by the driveshaft I don't know yet.
The 6L80E display is PRNDM1. At this point all I care about is the thing shifts then maybe in the future I will fool around with manual shifting.
#50
Adkoonerstrator
iTrader: (4)
Join Date: Nov 2001
Location: Deep in the seedy underworld of Koonerville
Posts: 21,436
Likes: 0
Received 3 Likes
on
2 Posts
One other thing is you will lose AFM with the swap into a regular 07 since none of the 6L80E vehicles have this feature. It was posted somewhere that GM was having issues with the AFM/6L80E combo and that is why it isn't in the 1500s yet. I've also heard it was because they just didn't have the production capacity yet for the 6L80E to go into all the trucks.
I think I would give up the AFM for a 6.2L/6L80E/AWD/RCSB setup though.
I think I would give up the AFM for a 6.2L/6L80E/AWD/RCSB setup though.
