Default Cam Install 4.8L Coming Soon!

Hello guys/gals, I am about to start my cam install (205/212) and I read about people experiencing problems with the JPR lifter tool getting stuck in the block. Is there anyone out there that can support or deny this claim?

I read on LS1 tech, someone suggested a trip to the local hardware store and buying 5/16" x 24" length metal rods (Aluminum I presume? ) Has anyone tried these rods? I am not sure metal would have to be used. I am sure that I dont want to try the lock them up in the plastic cup trick. That puts too much risk to the lifter dropping. Pen magnets are rather hard to find, not to mention rather expensive buying 16 of them.

I have the ls6 springs, but looking to get the spring compressor from SDPC that also has the sparkplug adapter. Do you have any thoughts about that tool combo set?

I am also looking for a place close to Sacramento CA. that tunes PCM's

Any and all information would be greatly appreciated.

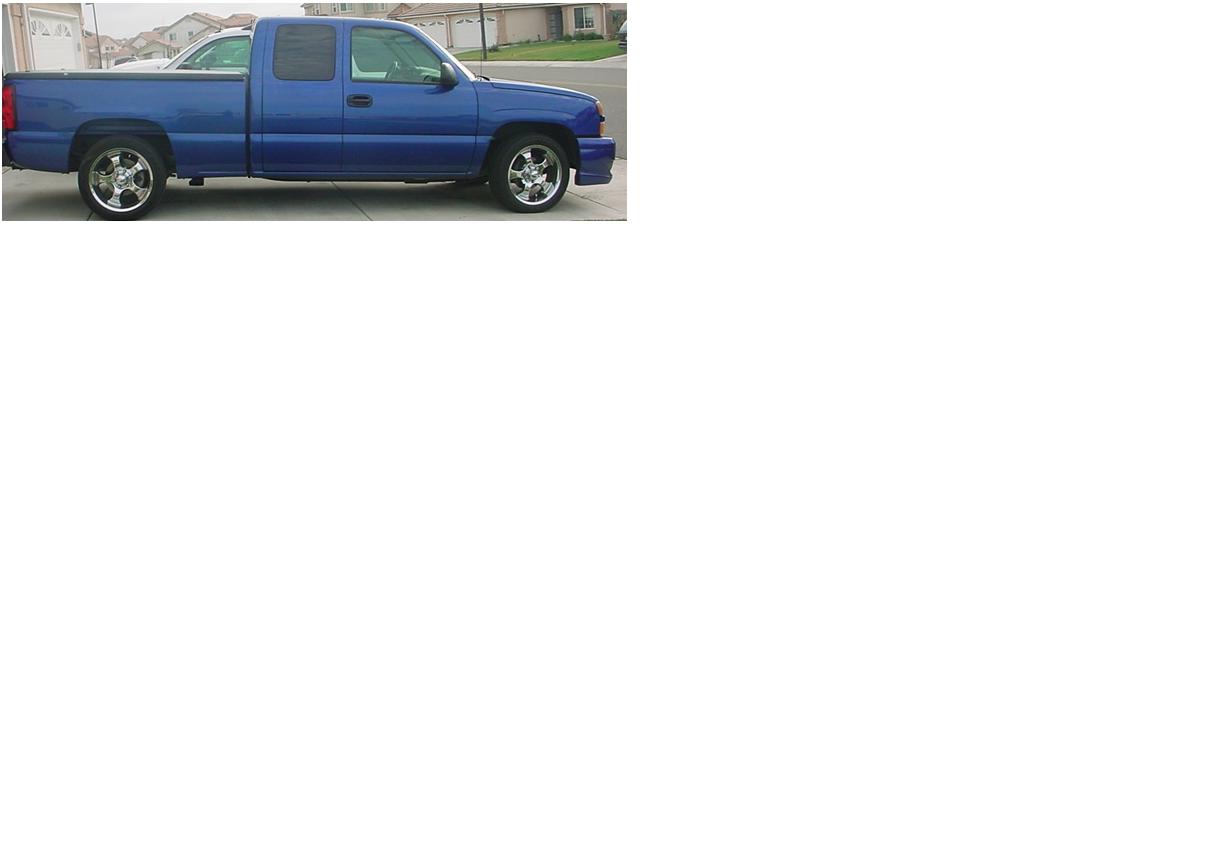

Attached Thumbnails Cam Install 4.8L Coming Soon!-truck-1.jpg

Last edited by Suddog; 01-14-2007 at 06:59 PM.
Old 01-15-2007, 07:39 AM
  #2
On The Tree

NyteSnyper's Avatar

Join Date: May 2006
Location: Texas
Posts: 190
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Suddog
Hello guys/gals, I am about to start my cam install (205/212) and I read about people experiencing problems with the JPR lifter tool getting stuck in the block. Is there anyone out there that can support or deny this claim?

I read on LS1 tech, someone suggested a trip to the local hardware store and buying 5/16" x 24" length metal rods (Aluminum I presume? ) Has anyone tried these rods? I am not sure metal would have to be used. I am sure that I dont want to try the lock them up in the plastic cup trick. That puts too much risk to the lifter dropping. Pen magnets are rather hard to find, not to mention rather expensive buying 16 of them.

I have the ls6 springs, but looking to get the spring compressor from SDPC that also has the sparkplug adapter. Do you have any thoughts about that tool combo set?

I am also looking for a place close to Sacramento CA. that tunes PCM's

Any and all information would be greatly appreciated.
Well, I cannot vouch for or against the lifter tool, however I can vouch for doing 3 cam installs (2 on trucks, 1 on an f-bod) with wooden dowel rods. The last install, the owner of the f-body bought metal rods and ended up buying wooden ones (like i advised him in the first place). Car had near 90K on the clock, so he DID have a little to be worried about, and all went well. I give my recommendation out on that, however do what makes you feel safe...

I always get mine at walmart, like 50 cents a piece.

As for the spring compressor, I went out and got the crane cams dual spring compressor and have loved it since. used one of those air spark plug deals on one of the truck installs and with the crane compressor, everything was cake (springs out and installed within 15 minutes). Other two times, used the top-dead-center method.
Old 01-15-2007, 09:44 AM
  #3
TECH Junkie
iTrader: (1)

8ALTNG's Avatar

Join Date: Aug 2003
Location: Methuen, MA
Posts: 3,647
Likes: 0
Received 1 Like on 1 Post
Default

is the the going to be run N/A??? The only reason I ask is that is a very very small cam and I dont think you will see any real increase in power N/A with it. just a thought.
Old 01-15-2007, 10:33 AM
  #4
2nd fastest 5.3 ECSB
iTrader: (14)

trever1t's Avatar

Join Date: Oct 2005
Location: NorCal
Posts: 26,690
Likes: 0
Received 1 Like on 1 Post
Default

Synergy Motorsports is in Fremont, about an hour away from Travis AFB more or less. Well worth the trip, tell Rick I sent ya
Old 01-15-2007, 11:04 AM
  #5
TECH Fanatic
iTrader: (28)

LARRY01Z28's Avatar

Join Date: Mar 2002
Location: waynesburg, KY.
Posts: 1,384
Likes: 0
Received 0 Likes on 0 Posts
Default

i have done about 25 cam installs. about 20 with wooden dowell pins form walmart. sanded them a little just to knock off any little shivings and slide them in. worked perfect. i also had the JPR tool given to me during one of my installs, customer told me i could keep it. so ive used them ever since and never had any problems with them.
i would still be using wooden dowells if someone hadnt give me the jpr tool.
Old 01-15-2007, 11:15 AM
  #6
TECH Enthusiast
Thread Starter
iTrader: (10)

Suddog's Avatar

Join Date: Aug 2005
Location: Guam
Posts: 511
Likes: 0
Received 0 Likes on 0 Posts
Default

Thanks for the advice on the wooden dowels. Much cheaper than $90. Sorry JPR I know you are a sponsor.
Old 01-15-2007, 11:18 AM
  #7
TECH Fanatic
iTrader: (28)

LARRY01Z28's Avatar

Join Date: Mar 2002
Location: waynesburg, KY.
Posts: 1,384
Likes: 0
Received 0 Likes on 0 Posts
Default

look thats 90 bucks you can spend on performace parts to help the sponsors.
Old 01-15-2007, 11:54 AM
  #8
TECH Resident
iTrader: (1)

UBLUZIN03's Avatar

Join Date: Aug 2006
Location: PA
Posts: 791
Likes: 0
Received 0 Likes on 0 Posts
Default

What size dowl is it?
Old 01-15-2007, 12:02 PM
  #9
On The Tree
iTrader: (1)

dirtyratt's Avatar

Join Date: Jan 2005
Location: Flint MI
Posts: 155
Likes: 0
Received 0 Likes on 0 Posts
Default

5/16 wooden dowel,works best
Old 01-15-2007, 12:18 PM
  #10
TECH Fanatic
iTrader: (28)

LARRY01Z28's Avatar

Join Date: Mar 2002
Location: waynesburg, KY.
Posts: 1,384
Likes: 0
Received 0 Likes on 0 Posts
Default

dont forget to sand it just to knock the little splinters off.
