fuel pump wireing
I just got a walbro 255lph and nelsons wiring harness for it, but I dont know where to hook up the wire that says fuel relay/ecu. Any ideas?
#2
TECH Resident
iTrader: (10)
Join Date: Oct 2005
Location: Cincinnati, Ohio
Posts: 948
Likes: 0
Received 0 Likes
on
0 Posts
Fuel pump relay is in the under hood fuse box. Are you looking for the fuel pump power wire, or the wire that turns the relay on? Did the kit come with it's own relay(s)?
Dave
Dave
#3
TECH Regular
iTrader: (1)
Join Date: Mar 2004
Location: oregon
Posts: 475
Likes: 0
Received 0 Likes
on
0 Posts
The gray wire from the nelson harness goes to the gray wire that is under the fuse panel that is in the engine bay. Watch out because there is more than one gray wire. You can test it with a test light. Hook the test light up to the gray wire then have someone turn the ignition to the on position NOT the start position. It should show power and you will here the OEM fuel pump come on for about a second or two then go off. The gray wire will be to the fire wall side of the fuse box. You will have to remove the corner brace, top of fuse box ,then the surrounding fuse box cover.
Check out this post of mine if you want part #s to hard plumb wabro in-line
link
Check out this post of mine if you want part #s to hard plumb wabro in-line
link
Last edited by blue 01; 07-08-2006 at 01:14 AM.
#4
On The Tree
Thread Starter
Join Date: Aug 2005
Location: oklahoma city
Posts: 155
Likes: 0
Received 0 Likes
on
0 Posts

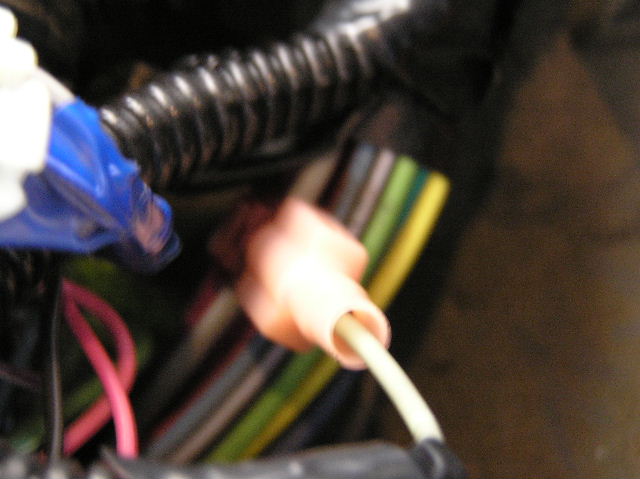

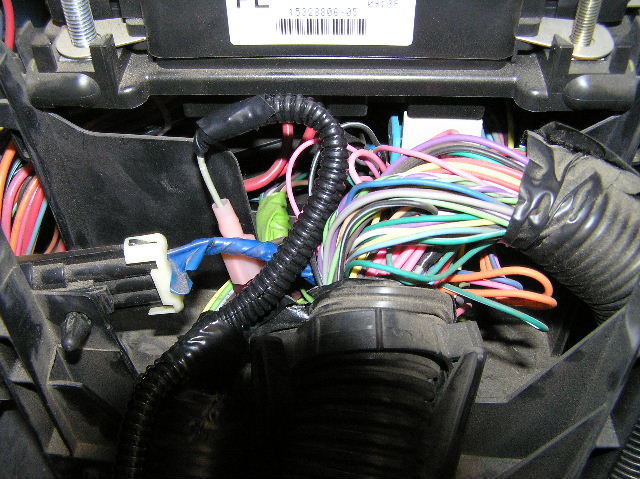

Thanks, I used the hard wire plumbing earlier. That info was great!!! It was a little different because I have a short bed single cab and my fuel filter is right next to my cross member but I made it work. After I tested all of the wires mine wound up being a green wire with a white stripe, but I came right off of the backside of the ECU wires. Also the wire from the nelson harness was light green, almost teal. Thanks for all of the help guys!! I love this place!
#6
TECH Regular
iTrader: (1)
Join Date: Mar 2004
Location: oregon
Posts: 475
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by tweeder
I also have the 225 how did you adapt the stock fuel line from the filter to goto the new pump? They are different sizes
Click on the word (link) that is above the picture that I posted above. All the part #s and how to are in that thread.
