head torque question
#2
On The Tree
Join Date: Jan 2007
Location: Medicine Hat, Alberta, Canada
Posts: 108
Likes: 0
Received 0 Likes
on
0 Posts
Depending on bolt configuration theres some slight differences but with all they recommend replacing the head bolts upon head reinstallation because they are torque turn specified and you stretch the bolts each time they are used. They must be torqued in sequence. Ensure your bolt holes are dry and clean or you will split the block. They recommend a little medium strength loctite on the threads of the 8mm bolts.
Step 1:
All 11mm bolts torque to 22ft/lbs
Step 2:
All 11mm bolts turn and additional 90 degrees
Step 3:
Depending on year and bolt!
If you have 2 different length 11mm bolts 3.94" and 6.1"
Tighten 1-8 in sequence an additional 90 degrees
Tighten 9 and 10 an additional 50 degrees.
If you have all same length 11mm bolts 3.94"
Tighten 1-10 in sequence an additional 70 degrees.
Step 4:
Tighten all 8mm bolts #11-15 to 22ft/lbs.
Heres the sequence:
Step 1:
All 11mm bolts torque to 22ft/lbs
Step 2:
All 11mm bolts turn and additional 90 degrees
Step 3:
Depending on year and bolt!
If you have 2 different length 11mm bolts 3.94" and 6.1"
Tighten 1-8 in sequence an additional 90 degrees
Tighten 9 and 10 an additional 50 degrees.
If you have all same length 11mm bolts 3.94"
Tighten 1-10 in sequence an additional 70 degrees.
Step 4:
Tighten all 8mm bolts #11-15 to 22ft/lbs.

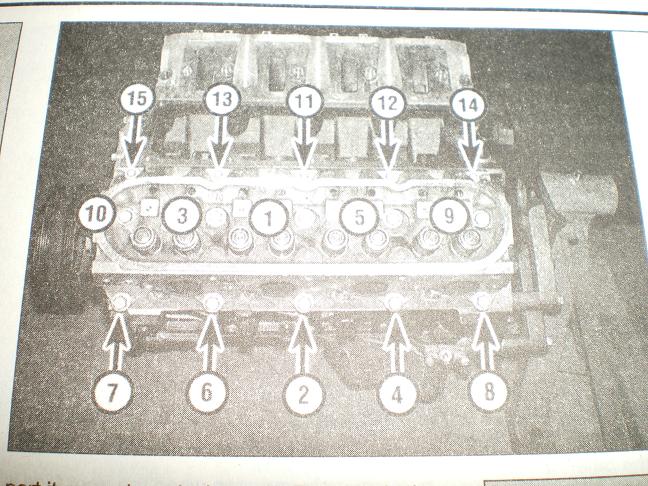

Heres the sequence:
#4
Teching In
Thread Starter
Join Date: Sep 2008
Location: terrell TX
Posts: 28
Likes: 0
Received 0 Likes
on
0 Posts
thanks, I spoke with a friend that works for the dealer and he gave me a torque spec of 115 flbs on the main head bolts and 22 flbs on the smaller bolts. thought I would share that with everybody. thanks for the input on the problem
#6
Teching In
Thread Starter
Join Date: Sep 2008
Location: terrell TX
Posts: 28
Likes: 0
Received 0 Likes
on
0 Posts
Well yes and no. according to him, the 115 flbs dry is really close to the 22+90+70. now adding up the rotation compared to the torque, it doesn't seem that far off. and a straight torque is alot easier to do in the truck. though I could be wrong and 115 flbs is alot of torque on a head bolt
#7
On The Tree
Join Date: Jan 2007
Location: Medicine Hat, Alberta, Canada
Posts: 108
Likes: 0
Received 0 Likes
on
0 Posts
Yea, but try turning all those degrees, you'd be surprised at how stiff they get! You know, i might have to try throwing a head on with the torque wrench to see how many degrees 115 gets me. I'm still pessimistic on a torque spec. Torque turn method was developed for more accurate clamping force. With conventional torquing you must take all factors into play, such as bolt head friction, thread friction etc, any bit of lube or lack of lube, depending on bolt torque instruction will also change this, whereas a specified revolultion of a particular thread pitch will result in far more consistent bolt stretch and relative clamping force. and it is no harder to torque turn a set of head bolts in the truck than out. Just mark the bolt heads, and measure out your degrees, make another mark. Use a long flex head ratchet or whatever (other than an impact lol) to turn to your marked point. Its not like you have to do the entire 90 degrees in one steady pull of the wrench.
Trending Topics
#9
On The Tree
Join Date: Jan 2007
Location: Medicine Hat, Alberta, Canada
Posts: 108
Likes: 0
Received 0 Likes
on
0 Posts
my first post, just follow the steps, straight out of the book, i don't think there is any more questions that need to be answered, do it once, do it right and be done!
