Winch hidden behind stock bumper
#1
On The Tree
Thread Starter
iTrader: (1)
Join Date: Sep 2011
Location: LA
Posts: 180
Likes: 0
Received 0 Likes
on
0 Posts
![Default](https://www.performancetrucks.net/forums/images/icons/icon1.gif)
Been having this winch for about 8 months and I finally got around to installing it!
I wanted it to hide behind the stock bumper...so let the cutting begin![Happy](https://www.performancetrucks.net/forums/images/smilies/LS1Tech/gr_stretch.gif)
![Name: 613BFD6D-F20D-46CB-8ECC-F97A9CFA27C3-435-0000002F3C13FA6D.jpg
Views: 2314
Size: 133.1 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124519d1501305230-winch-hidden-behind-stock-bumper-613bfd6d-f20d-46cb-8ecc-f97a9cfa27c3-435-0000002f3c13fa6d.jpg)
Made some brackets out of 1/4" angle iron.
![Name: 9684A55D-1FCB-4F1D-B716-AEE2AC9269D1-435-0000002F61FD9E09.jpg
Views: 2016
Size: 116.1 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124520d1501305230-winch-hidden-behind-stock-bumper-9684a55d-1fcb-4f1d-b716-aee2ac9269d1-435-0000002f61fd9e09.jpg)
![Name: 52041467-3A7A-41F4-A892-9C548CB1DADE-435-0000002F6CC0A10A.jpg
Views: 1844
Size: 103.2 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124521d1501305230-winch-hidden-behind-stock-bumper-52041467-3a7a-41f4-a892-9c548cb1dade-435-0000002f6cc0a10a.jpg)

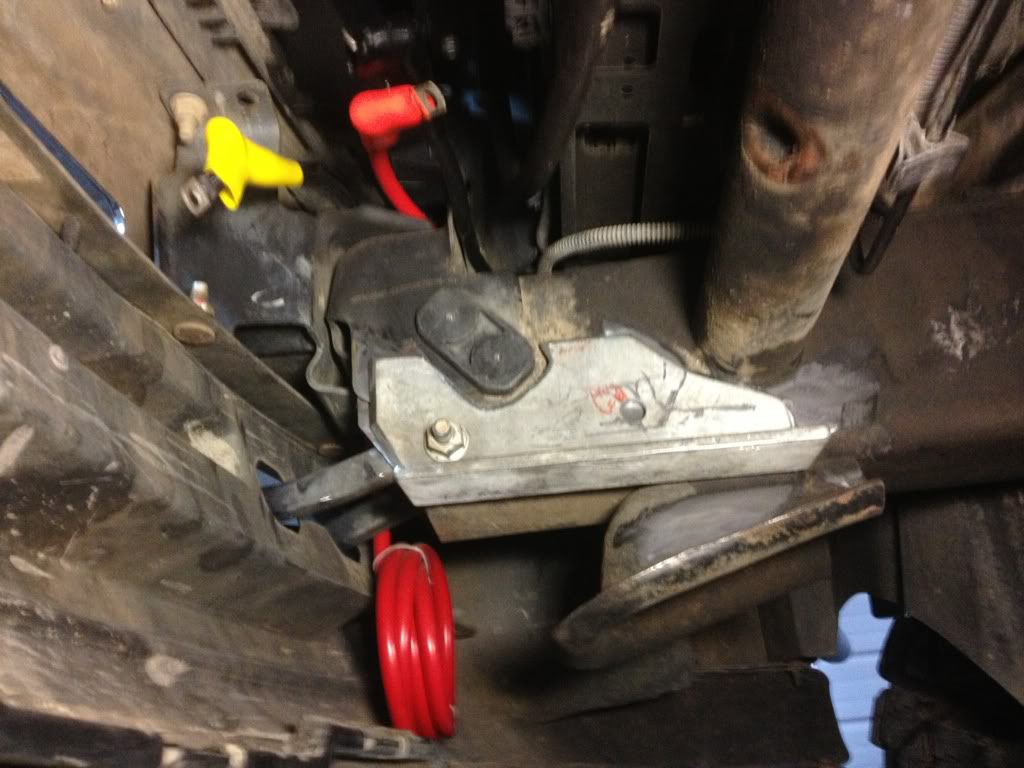

And utilized some factory holes even tho I still welded them
![Name: 21BD45D4-1208-400A-9CA4-C54EB8A3F711-435-0000002F78E0809A.jpg
Views: 1894
Size: 92.0 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124522d1501305230-winch-hidden-behind-stock-bumper-21bd45d4-1208-400a-9ca4-c54eb8a3f711-435-0000002f78e0809a.jpg)
![Name: 4ABB87C9-8B6F-43FD-8171-DD82F1079721-435-0000002F804F4D32.jpg
Views: 1841
Size: 97.5 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124523d1501305230-winch-hidden-behind-stock-bumper-4abb87c9-8b6f-43fd-8171-dd82f1079721-435-0000002f804f4d32.jpg)
Had to shorten engagement bolt
![Name: EEA773B3-E55D-493E-8F52-7EAE93D68B8D-435-0000002F8F327E22.jpg
Views: 1832
Size: 94.7 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124524d1501305230-winch-hidden-behind-stock-bumper-eea773b3-e55d-493e-8f52-7eae93d68b8d-435-0000002f8f327e22.jpg)
Removable bracket
![Name: ABF01FA8-826E-4F1E-9277-F93DB8600F38-435-0000002F95F201BD.jpg
Views: 3069
Size: 125.3 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124525d1501305230-winch-hidden-behind-stock-bumper-abf01fa8-826e-4f1e-9277-f93db8600f38-435-0000002f95f201bd.jpg)
![Name: 55C5ED20-BC29-4B8D-BC1C-FF47949CDD7B-435-0000002F9BCD9A7C.jpg
Views: 1901
Size: 98.2 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124526d1501305230-winch-hidden-behind-stock-bumper-55c5ed20-bc29-4b8d-bc1c-ff47949cdd7b-435-0000002f9bcd9a7c.jpg)
![Name: A2064600-4007-4475-A557-117C2E30D95F-435-0000002FA37523B2.jpg
Views: 2479
Size: 103.4 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124527d1501305230-winch-hidden-behind-stock-bumper-a2064600-4007-4475-a557-117c2e30d95f-435-0000002fa37523b2.jpg)
![Name: 20439DEC-3B5C-4C88-AC0D-C892B43325F2-435-0000002FB1ADC82C.jpg
Views: 1902
Size: 126.2 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124528d1501305230-winch-hidden-behind-stock-bumper-20439dec-3b5c-4c88-ac0d-c892b43325f2-435-0000002fb1adc82c.jpg)
![Name: 05222996-5C7A-4477-8C46-07D4B03C13AC-435-0000002FB8D375BE.jpg
Views: 1857
Size: 98.8 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124529d1501305230-winch-hidden-behind-stock-bumper-05222996-5c7a-4477-8c46-07d4b03c13ac-435-0000002fb8d375be.jpg)
Welded brackets in
![Name: 3C2C90DB-C263-4C35-AE69-844FA4E7504D-435-0000002FC4B448BF.jpg
Views: 1902
Size: 111.8 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124530d1501305230-winch-hidden-behind-stock-bumper-3c2c90db-c263-4c35-ae69-844fa4e7504d-435-0000002fc4b448bf.jpg)
Bolted winch plate up
![Name: D1037285-374E-4C39-98B7-7F64E5135497-435-0000002FD3A162B3.jpg
Views: 1831
Size: 115.7 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124531d1501305230-winch-hidden-behind-stock-bumper-d1037285-374e-4c39-98b7-7f64e5135497-435-0000002fd3a162b3.jpg)
![Name: 00C5B2F1-20A8-4E58-9EB9-9B13FB902EFF-435-0000002FDAB4C7B3.jpg
Views: 2956
Size: 121.3 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124532d1501305230-winch-hidden-behind-stock-bumper-00c5b2f1-20a8-4e58-9eb9-9b13fb902eff-435-0000002fdab4c7b3.jpg)
Now you see it!
![Name: 8FF7EBA4-661F-419E-9F6D-8AC4B17E01C7-435-0000002FE514737B.jpg
Views: 4597
Size: 155.9 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124533d1501305230-winch-hidden-behind-stock-bumper-8ff7eba4-661f-419e-9f6d-8ac4b17e01c7-435-0000002fe514737b.jpg)
Now you don't!
![Name: C4B06995-3F29-4BE9-A287-1CD7A32A336E-435-0000002FEB5EC701.jpg
Views: 1975
Size: 158.6 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124534d1501305230-winch-hidden-behind-stock-bumper-c4b06995-3f29-4be9-a287-1cd7a32a336e-435-0000002feb5ec701.jpg)
Had so much fun I went ad did a donut![Winky](https://www.performancetrucks.net/forums/images/smilies/LS1Tech/gr_wink.gif)
http://i1132.photobucket.com/albums/...3011B29A23.mp4
I wanted it to hide behind the stock bumper...so let the cutting begin
![Happy](https://www.performancetrucks.net/forums/images/smilies/LS1Tech/gr_stretch.gif)
![Name: 613BFD6D-F20D-46CB-8ECC-F97A9CFA27C3-435-0000002F3C13FA6D.jpg
Views: 2314
Size: 133.1 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124519d1501305230-winch-hidden-behind-stock-bumper-613bfd6d-f20d-46cb-8ecc-f97a9cfa27c3-435-0000002f3c13fa6d.jpg)
Made some brackets out of 1/4" angle iron.
![Name: 9684A55D-1FCB-4F1D-B716-AEE2AC9269D1-435-0000002F61FD9E09.jpg
Views: 2016
Size: 116.1 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124520d1501305230-winch-hidden-behind-stock-bumper-9684a55d-1fcb-4f1d-b716-aee2ac9269d1-435-0000002f61fd9e09.jpg)
![Name: 52041467-3A7A-41F4-A892-9C548CB1DADE-435-0000002F6CC0A10A.jpg
Views: 1844
Size: 103.2 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124521d1501305230-winch-hidden-behind-stock-bumper-52041467-3a7a-41f4-a892-9c548cb1dade-435-0000002f6cc0a10a.jpg)
And utilized some factory holes even tho I still welded them
![Name: 21BD45D4-1208-400A-9CA4-C54EB8A3F711-435-0000002F78E0809A.jpg
Views: 1894
Size: 92.0 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124522d1501305230-winch-hidden-behind-stock-bumper-21bd45d4-1208-400a-9ca4-c54eb8a3f711-435-0000002f78e0809a.jpg)
![Name: 4ABB87C9-8B6F-43FD-8171-DD82F1079721-435-0000002F804F4D32.jpg
Views: 1841
Size: 97.5 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124523d1501305230-winch-hidden-behind-stock-bumper-4abb87c9-8b6f-43fd-8171-dd82f1079721-435-0000002f804f4d32.jpg)
Had to shorten engagement bolt
![Name: EEA773B3-E55D-493E-8F52-7EAE93D68B8D-435-0000002F8F327E22.jpg
Views: 1832
Size: 94.7 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124524d1501305230-winch-hidden-behind-stock-bumper-eea773b3-e55d-493e-8f52-7eae93d68b8d-435-0000002f8f327e22.jpg)
Removable bracket
![Name: ABF01FA8-826E-4F1E-9277-F93DB8600F38-435-0000002F95F201BD.jpg
Views: 3069
Size: 125.3 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124525d1501305230-winch-hidden-behind-stock-bumper-abf01fa8-826e-4f1e-9277-f93db8600f38-435-0000002f95f201bd.jpg)
![Name: 55C5ED20-BC29-4B8D-BC1C-FF47949CDD7B-435-0000002F9BCD9A7C.jpg
Views: 1901
Size: 98.2 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124526d1501305230-winch-hidden-behind-stock-bumper-55c5ed20-bc29-4b8d-bc1c-ff47949cdd7b-435-0000002f9bcd9a7c.jpg)
![Name: A2064600-4007-4475-A557-117C2E30D95F-435-0000002FA37523B2.jpg
Views: 2479
Size: 103.4 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124527d1501305230-winch-hidden-behind-stock-bumper-a2064600-4007-4475-a557-117c2e30d95f-435-0000002fa37523b2.jpg)
![Name: 20439DEC-3B5C-4C88-AC0D-C892B43325F2-435-0000002FB1ADC82C.jpg
Views: 1902
Size: 126.2 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124528d1501305230-winch-hidden-behind-stock-bumper-20439dec-3b5c-4c88-ac0d-c892b43325f2-435-0000002fb1adc82c.jpg)
![Name: 05222996-5C7A-4477-8C46-07D4B03C13AC-435-0000002FB8D375BE.jpg
Views: 1857
Size: 98.8 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124529d1501305230-winch-hidden-behind-stock-bumper-05222996-5c7a-4477-8c46-07d4b03c13ac-435-0000002fb8d375be.jpg)
Welded brackets in
![Name: 3C2C90DB-C263-4C35-AE69-844FA4E7504D-435-0000002FC4B448BF.jpg
Views: 1902
Size: 111.8 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124530d1501305230-winch-hidden-behind-stock-bumper-3c2c90db-c263-4c35-ae69-844fa4e7504d-435-0000002fc4b448bf.jpg)
Bolted winch plate up
![Name: D1037285-374E-4C39-98B7-7F64E5135497-435-0000002FD3A162B3.jpg
Views: 1831
Size: 115.7 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124531d1501305230-winch-hidden-behind-stock-bumper-d1037285-374e-4c39-98b7-7f64e5135497-435-0000002fd3a162b3.jpg)
![Name: 00C5B2F1-20A8-4E58-9EB9-9B13FB902EFF-435-0000002FDAB4C7B3.jpg
Views: 2956
Size: 121.3 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124532d1501305230-winch-hidden-behind-stock-bumper-00c5b2f1-20a8-4e58-9eb9-9b13fb902eff-435-0000002fdab4c7b3.jpg)
Now you see it!
![Name: 8FF7EBA4-661F-419E-9F6D-8AC4B17E01C7-435-0000002FE514737B.jpg
Views: 4597
Size: 155.9 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124533d1501305230-winch-hidden-behind-stock-bumper-8ff7eba4-661f-419e-9f6d-8ac4b17e01c7-435-0000002fe514737b.jpg)
Now you don't!
![Name: C4B06995-3F29-4BE9-A287-1CD7A32A336E-435-0000002FEB5EC701.jpg
Views: 1975
Size: 158.6 KB](https://www.performancetrucks.net/forums/attachments/gmt-900-trucks-general-discussion-188/124534d1501305230-winch-hidden-behind-stock-bumper-c4b06995-3f29-4be9-a287-1cd7a32a336e-435-0000002feb5ec701.jpg)
Had so much fun I went ad did a donut
![Winky](https://www.performancetrucks.net/forums/images/smilies/LS1Tech/gr_wink.gif)
http://i1132.photobucket.com/albums/...3011B29A23.mp4
#7
Tin Foil Hat Wearin' Fool
iTrader: (36)
![Default](https://www.performancetrucks.net/forums/images/icons/icon1.gif)
Time to hook it up to the top of a tree and test out the mount.![Grin](https://www.performancetrucks.net/forums/images/smilies/LS1Tech/gr_grin.gif)
For those who dont have the welding skill check this out
Rough Country Sneak Peek!!!! - Chevy Truck Forum | GMC Truck Forum - GmFullsize.com
I've been debating whether to do a mount like you did or a multi mount. Cant decide.
What kind of hwy mileage are you getting at what mph?
![Grin](https://www.performancetrucks.net/forums/images/smilies/LS1Tech/gr_grin.gif)
For those who dont have the welding skill check this out
Rough Country Sneak Peek!!!! - Chevy Truck Forum | GMC Truck Forum - GmFullsize.com
I've been debating whether to do a mount like you did or a multi mount. Cant decide.
What kind of hwy mileage are you getting at what mph?
