Turbo ccsb- TMS iron 5.7 build
#1
Turbo ccsb- TMS iron 5.7 build
long story short, the junkyard 5.3 in my truck lost oil pressure. after no luck finding another reasonably priced junyard engine, I called thompson motorsports and ordered one of their iron 5.7s with forged pistons and rods.
Goals for this build... its just a reliable daily driver. something to have fun with. and i use it to pull a lowboy trailer with camping gear, dirtbikes, and quads. I would be happy if the truck makes 500+ on straight pump 93. eventually it will get meth and a bigger turbo. 600+ would be plain bad ***.
Specs:

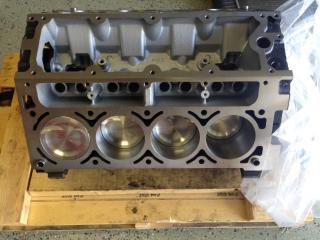

5.3 block
3.908 diamomd pistons -10cc
tms rings
4340 scat i beam rods
stock crank
pac 1218 valve springs with .015 shims
BTR pushrods
LS7 lifters
212/218 563/563 113+2 cam from BTR
10:1 compression with my current 862 heads

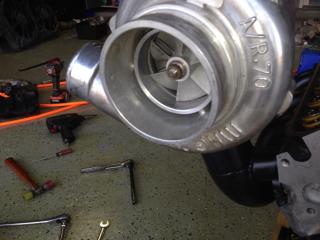

trick stage stage 2 turbo kit with magnum t70 .70ar
I would like to give a huge thanks in advance to Kasey(06tx4.8) for helping me out with the swap since im in the middle of buying a new house and my garage is all packed up, and to wheatley for tuning this thing when its up and running
Goals for this build... its just a reliable daily driver. something to have fun with. and i use it to pull a lowboy trailer with camping gear, dirtbikes, and quads. I would be happy if the truck makes 500+ on straight pump 93. eventually it will get meth and a bigger turbo. 600+ would be plain bad ***.
Specs:
5.3 block
3.908 diamomd pistons -10cc
tms rings
4340 scat i beam rods
stock crank
pac 1218 valve springs with .015 shims
BTR pushrods
LS7 lifters
212/218 563/563 113+2 cam from BTR
10:1 compression with my current 862 heads
trick stage stage 2 turbo kit with magnum t70 .70ar
I would like to give a huge thanks in advance to Kasey(06tx4.8) for helping me out with the swap since im in the middle of buying a new house and my garage is all packed up, and to wheatley for tuning this thing when its up and running
Last edited by LS1TRUCKGUY; 10-19-2014 at 01:01 AM.
#5
I need to get get a new boost controller. Mine **** the bed, so im running on the wastegate spring. Makes 10-11 psi on the wastegate spring now. Im not sure how much boost it will make with the added displacement. I would like to see 500 to the wheels on straight 93, so however much boost it takes to get there.
Last edited by LS1TRUCKGUY; 10-16-2014 at 08:11 AM.
